Siemens VoiceLink

Siemens VoiceLink is an accessory designed for use with Siemens EasyTek. The unit supports two roles: a clip-on microphone input and an audio input for stationary sources without Bluetooth functionality. Operation requires Siemens EasyTek (sold separately) and compatible Siemens hearing aids that can connect via EasyTek.

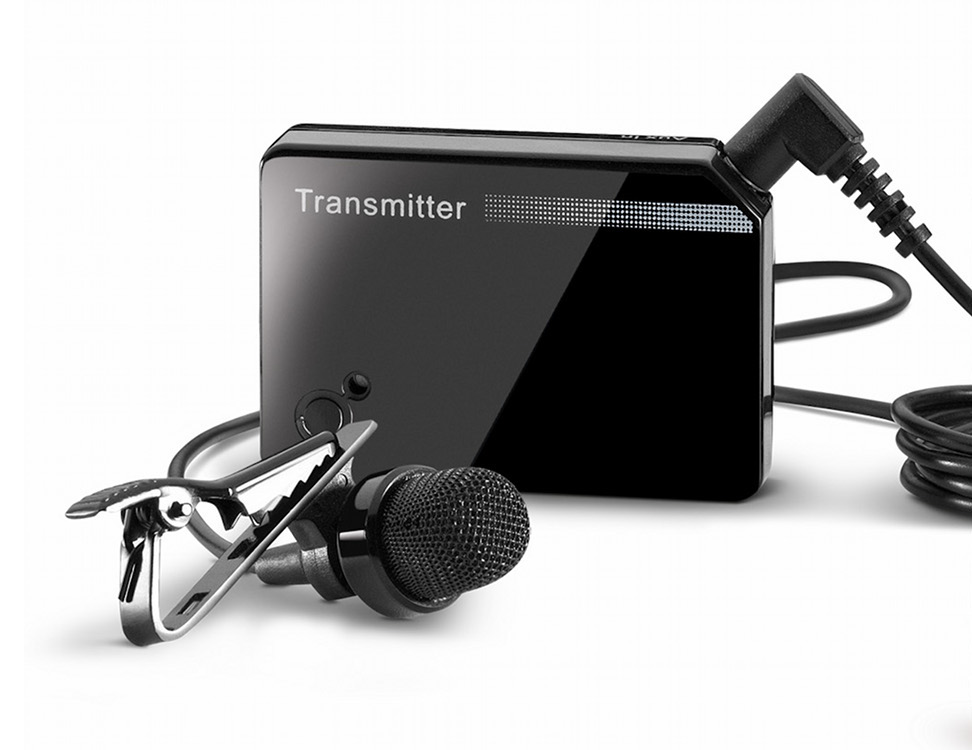

Included microphone: Clip-on microphone for voice pickup and transmission through EasyTek.

Audio source connection: Inputs from stationary devices can be connected using the supplied audio cables and adapters (3.5 mm, 2.5 mm, 6.3 mm, RCA, SCART via adapter), for routing audio through EasyTek.

Range: Up to 20 m (manufacturer-stated).

Technical data:
– Input voltage (Mini-USB): 5 VDC
– Input current (Mini-USB) max.: 200 mA
– Operating conditions: 0°C to 45°C
– Storage conditions: -10°C to 45°C; low humidity
– Mini-USB power supply: 5 VDC output, minimum 0.5 A output current

Package contents:
– Clip and adhesive tape
– Microphone
– 1.8 m audio cable with 3.5 mm stereo jack and 2.5 mm stereo jack
– 0.3 m audio cable with 3.5 mm stereo jack and 2.5 mm stereo jack
– Adapter set: 2.5 mm stereo jack to 3.5 mm stereo jack
– 6.3 mm stereo jack to 3.5 mm stereo jack
– RCA to 3.5 mm stereo jack adapter
– RCA to SCART adapter

Compatibility:
– Siemens hearing aids that can be connected with Siemens EasyTek
– Requires Siemens EasyTek (sold separately)
